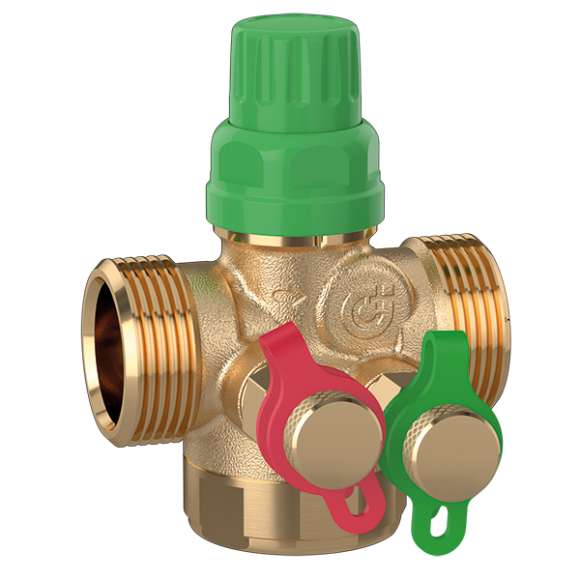

FLOWMATIC® - Pressure independent control valve (PICV)
Code : 145
Pressure independent control valve FLOWMATIC®.
CR dezincification resistant alloy body.
Male connections. Flow rate regulator in polymer
with membrane in EPDM.
Graduated scale indicator.
Max. working pressure: 25 bar.
Temperature range: -20–120 °C.
Max. percentage of glycol: 50 %.
Δp range: 25–400 kPa.
With pressure test ports.
Fitted for 145 series actuator and
6565/6566 series thermo-electric actuator.
